35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce
Home > Products > Air cooled scroll chiller > 35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce

35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce

    Unit Price: 13000~15000 USD
    Min. Order: 1 Piece/Pieces
    Supply Ability: 2000set/Year
    Port: Shenzhen

Product Description

HERO-TECH air cooled Industrial Chiller

35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce
HTI-A series industrial chiller is mainly applied in Plastic & Rubber industry, it can accurately control the molding temperature and shorten the molding circle, increase the product quality and improve the production efficiency. They are widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military.

Product Parameters
ModelHTI-40AF
Cooling formAir-cooled
Nominal cooling capacity
7ºC chilled water93740 Kcal/h
109 Kw
12ºC chilled water111542 Kcal/h
129.7 Kw
Input power39.08 Kw
Power source3PH 380V~415V 50HZ/60HZ
Refrigerant                                             R22/R407C
CompressorTypeHermetic-scroll
BrandDanfoss
Quantity4
CondenserHigh efficiency aluminum finned coil + big volume low noise axial fan
EvaporatorTypeTank with copper coil / Shell and tube
Chilled water volume17.75 M³/h
Safety devicesCompressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection
Dimension2180*1800*2040 mm
Net weight1500 Kg

NOTE: The specifications based on the following design conditions
Chilled water supply/return temperature: 7ºC/12ºC
Cooling air inlet/outlet temperature: 30ºC/38ºC
We reserve the right to modify the specifications without further notice.

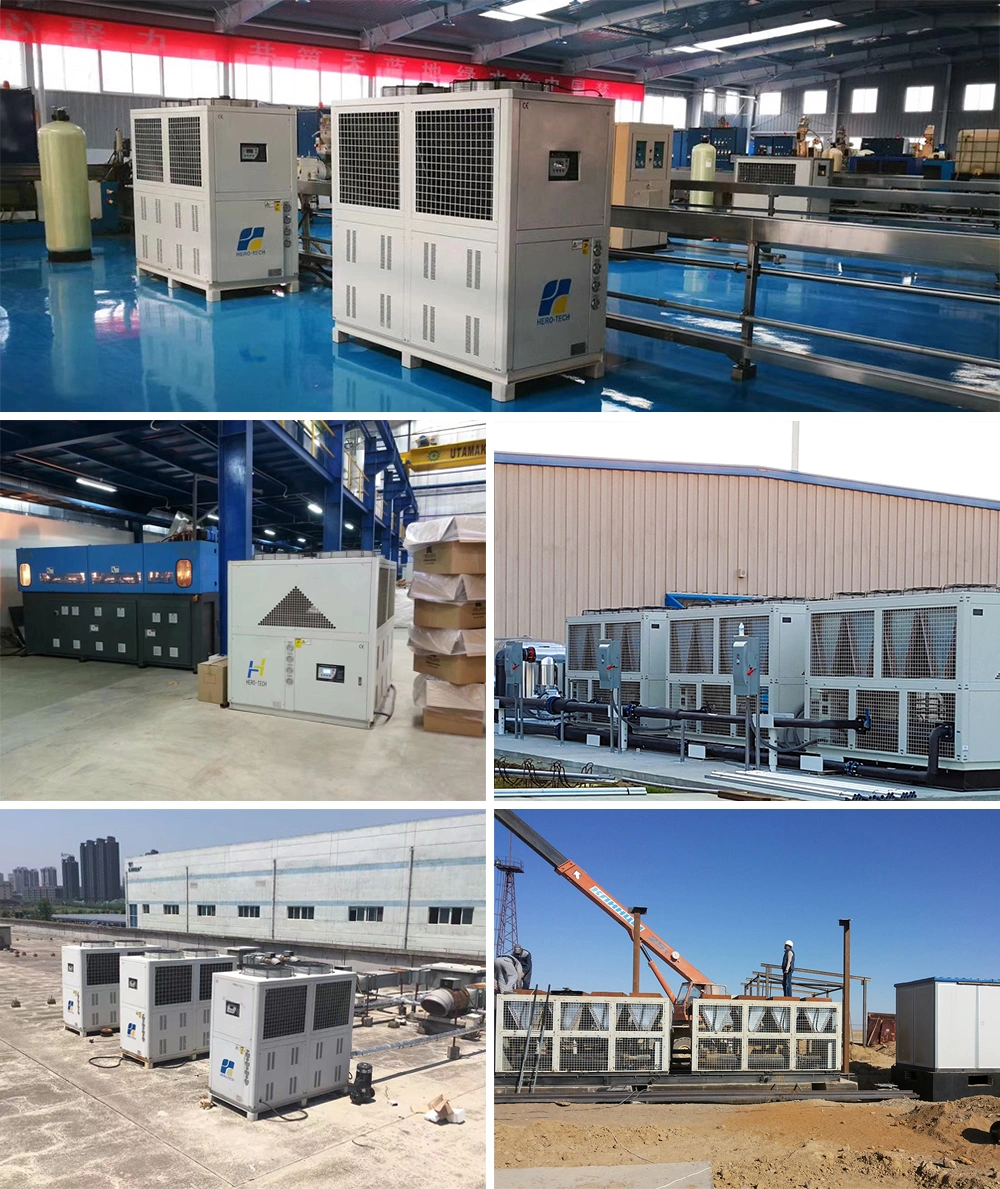

Application


35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce
35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce

Design features
1.Emerson expansion valve.

2.Self-processing components: Condenser, Evaporator, SS storage tank and Cabinet self-processing.
3.Refrigerant: R22 charged, CFC free type R407C, R410A, R134A for option.
4.Energy efficient solutions: our specialists are aware of the rising cost of energy and the pressure to reduce energy consumption, and offer many energy saving products that favor life time costs including variable speed pump & fan packages and energy efficient refrigeration products.
5.Multi-protection devices ensure the chiller unit running safety.
-Compressor inner protection,
-over current protection,
-high/low pressure protection,
-over temperature protection,
-High discharge temperature alarm
-flow rate protection,
-phase sequence/phase missing protection,
-low level coolant protection,
-anti freezing protection,
-exhaust overheat protection
35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce
35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce

35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce

Why choose us ?
35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce
Made by Tech , Made by Heart
  1. Professional and experienced technician & sales team service to the oversea market, offering professional solution according to requirements.
  2. Service call response within 1 hour, solution offered within 4hrs, and own oversea installation and maintenance team.
  3. Factory has a professional R&D team.
  4. Products have European CE certificate. Factory has more than 10 product patents.
  5. Having our own ERP system to control our factory's procedures help us make sure our delivery times and product quality. Over 20 years of experience gives us the edge.
  6. We could provide OEM/ODM services for many customers worldwide.
35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce
Company Profile

35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce

About us
Hero-Tech refrigeration Equipment Co., Ltd, subordinated to Hero-Tech Group, was founded in Shenzhen Guangdong Province in 2005, with registered capital RMB5,000,000.00. And we have our own Heat Exchanger processing factory and Casing processing factory.
Since its inception, Hero-Tech adhered to Germany technique and management and passed certification of ISO9001:2000 and CE. 20 years experience in industrial refrigeration made Hero-Tech front-runner status in China. Meanwhile, oversea sales network was built and improved, covering dozens of countries and areas, such as the Occident, Middle-East, South-East Asia and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2019, export value contributes more than 70% of the annual sales turnover.
"Professional, therefore take the lead". After years of development, Hero-Tech has domestic and foreign customers consistent high praise because of excellent product performance and high efficiency service.

35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce

Packing and shipping
35ton/35tr Air Cooled Industrial Chiller with High Efficiency and Ce
FAQ
Q1: Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:

Cooling capacity; If you don't know, you can offer the flow rate to your machine, temperature in and temperature out from your using part; Environment
temperature; Refrigerant type, R22, R407c or other, pls clarify; Voltage; Application industry; Pump flow and pressure requirements;
Any other special requirements.

Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.

The units will be fully tested before package and The packing will be carefully checked.


Q3: What's the warranty?
A3: 1 year warranty for all parts; Whole life labor free!

Q4: Are you a manufacturer?
A4: Yes, we have more than 23 years in industrial refrigeration business. Our factory located in Shenzhen; Welcome to visit us at anytime. Also have patent on the chillers' design.

Q5: How can I place an order?
A5: Contact our online customer service, or call us via Cel number +86 15920056387 directly.
