Stenter Fume Exhaust Gas Treatment Machine
Stenter Fume Exhaust Gas Treatment Machine
| Payment Type: | L/C |
|---|---|
| Min. Order: | 1 Bag/Bags |
| Productivity: | 80-100set/Year |
|---|---|
| Supply Ability: | 80-100set/Year |
| Certificate: | CE, ISO9001: 2000 |
Product Description

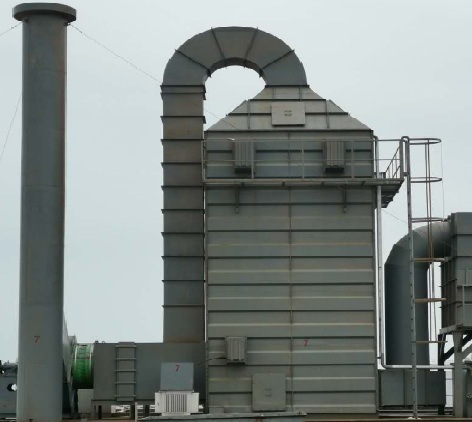

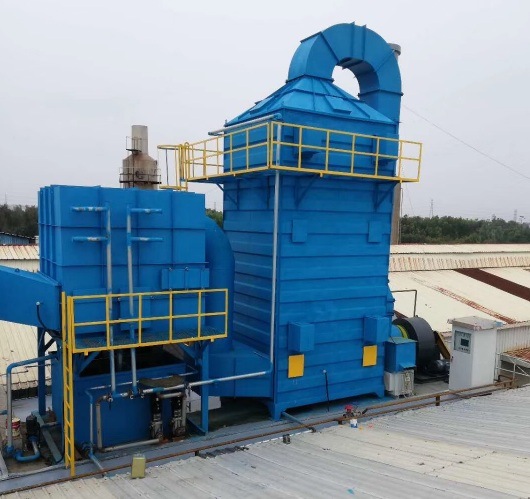

Stenter oil fume purifier lampblack exhaust gas treatment machine
Introduction to the Production Process of the Stenter Machine
The temperature range of the fume and exhaust gas is about 180-190°C, and the fume and exhaust gas generated by the single setting machine is mostly above 12000-15000m3/h, which in total is about 12000-15000m3/h. The concentration of soot in the waste fume is generally in the range of 200 to 1000 mg/m3 during production process.
At present, there are two production lines for purification and treatment, and the amount of fume and exhaust gas by each line is 12000~15000m3/h. The designed treatment air volume is 15,000 m3/h, and the fume and exhaust gas outlet temperature is about 180-210 °C (the temperature after cooling is about 50-60 °C). The concentration of soot in the exhaust gas may vary depending on the ingredients.
Table 1: Predicted source of fume and exhaust gas
Achieved Emission Standards
01.The removal rate of fume is over 95%, and the total particulate removal rate is over 95%.
02.No visible smoke at the chimney
The temperature range of the fume and exhaust gas is about 180-190°C, and the fume and exhaust gas generated by the single setting machine is mostly above 12000-15000m3/h, which in total is about 12000-15000m3/h. The concentration of soot in the waste fume is generally in the range of 200 to 1000 mg/m3 during production process.
At present, there are two production lines for purification and treatment, and the amount of fume and exhaust gas by each line is 12000~15000m3/h. The designed treatment air volume is 15,000 m3/h, and the fume and exhaust gas outlet temperature is about 180-210 °C (the temperature after cooling is about 50-60 °C). The concentration of soot in the exhaust gas may vary depending on the ingredients.
Table 1: Predicted source of fume and exhaust gas
| Exhaust Gas Volume | Fume | Dust | ||
| M³/h | /m³ | /h | /m³ | /h |
| 16000-20000 | 200-1000 | 9.6-48 | 20-200 | 0.96-4.8 |
Achieved Emission Standards
01.The removal rate of fume is over 95%, and the total particulate removal rate is over 95%.
02.No visible smoke at the chimney
Product parameter：
| Model NO. | LK-JY01 |
| Warranty | 1 Year |
| Condition | New |
| Trademark | LINK |
| Transport Package | Standard Export Packing |
| Specification | 1-1, 1-2, 1-3, 1-4. |
| Origin | China |
| HS Code | 8431299090 |
Device list
01 Condenser
Cooling adopts finned tube, and cooling method of cooling water in the tube.
02 Dual zone electrostatic degreasing device
03 Honeycomb electrostatic box
04 High Pressure Generator
05 Pipeline Selection
The wind speed of the pipeline is 10m/s, the pipeline needs to be fully welded, and oil cannot be leaked.
06 Fire Fighting System
07 System Cleaning

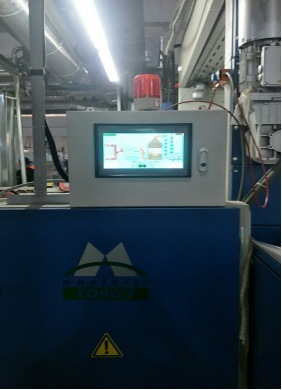

The system is equipped with an automatic cleaning system, which can be cleaned regularly or periodically, and can be cleaned by detecting the purification effect, which effectively reduces the cost of cleaning labor, and the cleaning is online operation, and does not affect normal production during work.
Technology Parameter
| Project | Content | Data | Notes |
| Basic parameters | Cooling Tower type | Counterflow circular cooling tower | Circular counterflow |
| Cooling tower model | LYC-W-175 | ||
| Cooling circulation water volume | |||
| Inlet temperature / outlet temperature | 60ºC/35ºC | Cool down by 25 ° C | |
| Environmental dry bulb/wet bulb temperature | 31.8ºC/28ºC | ||
| Cooling capacity | |||
| Noise value | 63.5dB(A) | DM | |
| power supply | 380V/3P/50Hz | ||
| Water quality requirements | PH value = 6-8 | ||
| Design Parameters | Gas to water ratio | 0.68 kg/kg | |
| Water resistance | 44.5 kPa | ||
| Flying water loss | ≤0.001% | ||
| Evaporation loss | ≤0.833% | ||
| Net weight / running weight | 1634 kg/5544 kg | ||
| Fan parameters | Fan form | Axial flow | |
| Total static pressure | 90 Pa | ||
| speed of the fan | 250r/min | ||
| Blade diameter (Φ) | 2400 mm | ||
| Number of blades | 4 pieces / set | ||
| Motor form | Fully enclosed waterproof | ||
| transfer method | Belt reducer | ||
| Motor Power | 10.0 HP | ||
| Main dimensions | Length × width × height (D × H) | 4790×4150 mm | |
| Inlet pipe size (DN) | 200mm | ||
| Outlet pipe size (DN) | 200mm | ||
| Irrigation pipe / drain pipe size (DN) | 50mm/50mm | ||
| Automatic / manual hydration size (DN) | 40mm/40mm | ||
| Material | Body of the outer casing | FRP | High quality fiberglass felt and resin synthesis |
| Chassis | |||
| Speed reducer | 10# | ||
| Belt | Composite material | ||
| Fan | Aluminum alloy, large string arc | ||
| Motor | Fully enclosed waterproof, Class B, IP54 | ||
| film | P.P.. material | ||
| Electric frame, packing support | Hot dip galvanized steel |
